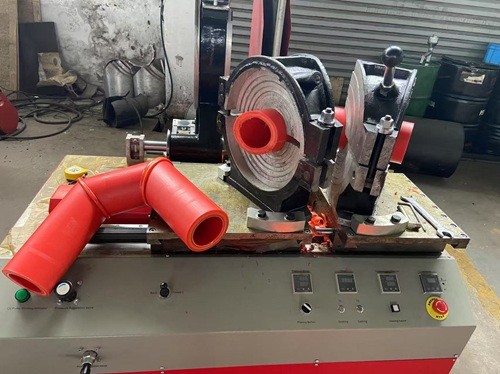

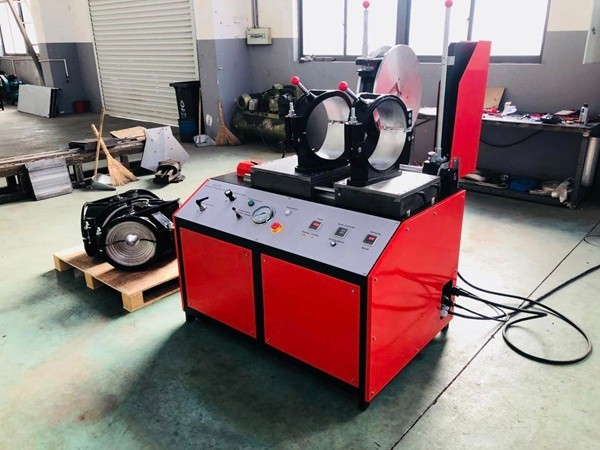

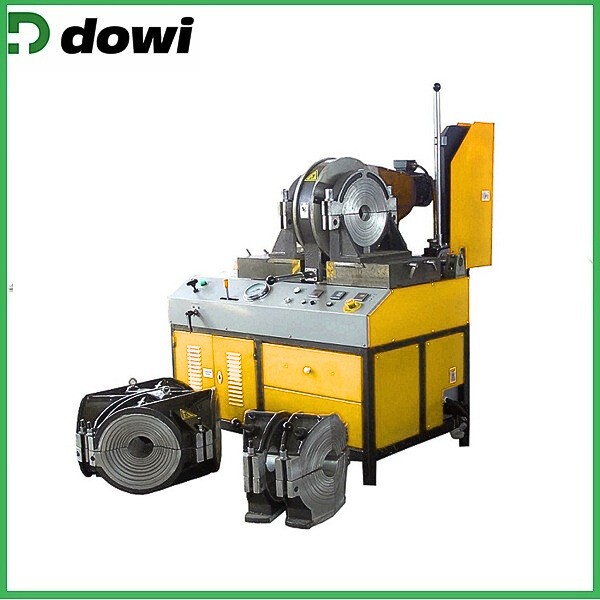

DWF315 Workshop Fitting Welding Machine

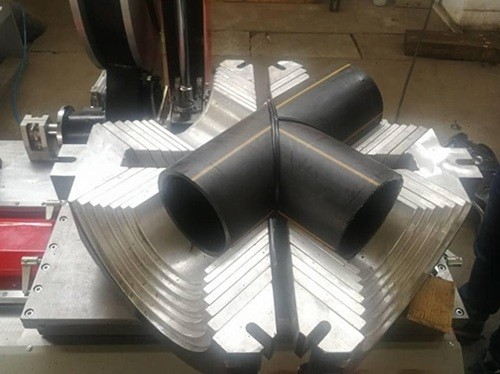

1. Suitable for fabricating Elbow, Tee, Y shape(45° and 60°) fittings of PE PP PVDF in workshop.
2. Intergrated structure, nothing remains but to choose the different special clamps while fabricating different fittings.

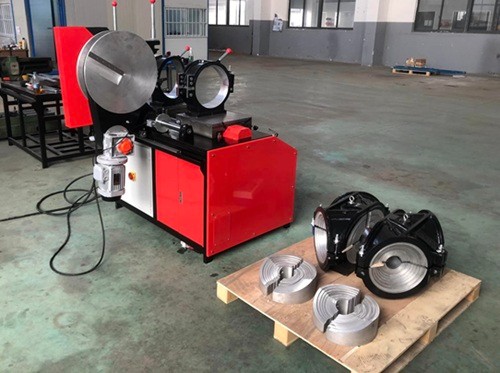

3. Consists of Basic Frame, Hydraulic Unit, Trimmer, Heater and Electric Control Unit.
4. Removable PTFE coated heating plate with separate temperature control system.
5. Electric Trimmer with resersible double cutting edge blades.
6. Hydraulic Unit provides welding machine with compressing power.
7. Low starting pressure ensurs reliable welding quality of small pipes.
8. Including the Temperature Controller and Timer, easy to know the time and temperature.

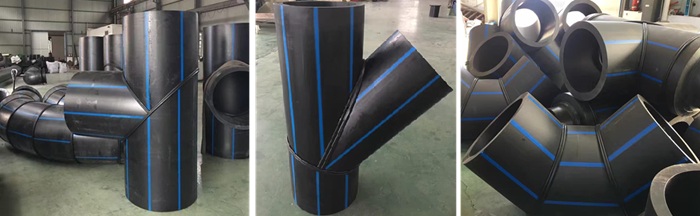

Suitable for fabricating elbow, tee.cross and Y shape (45°and 60°) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting. Integrate structure
Nothing remains but to choose the different special clamps while fabricating different fittings
Removable PTFE coated heating plate
Electric planning tool with safety limit switch
Low starting pressure and high reliable seal structure
Separate two-channel timer records times in soaking and cooling phases
High-accurate and shockproof pressure meter indicates clearer readings. Digital pressure meter is installed on machines
Pivoting planning tool and heating plate bring convenience to placing and removing, Products comply with 98/37/EC and 73/23/EEC standards
