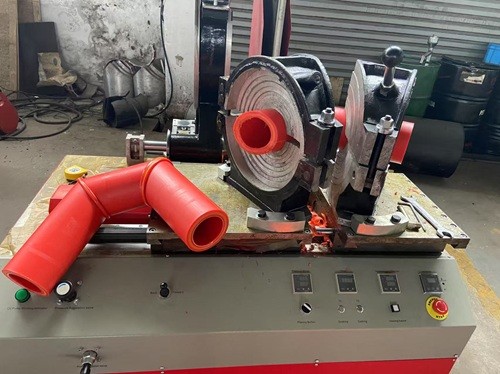

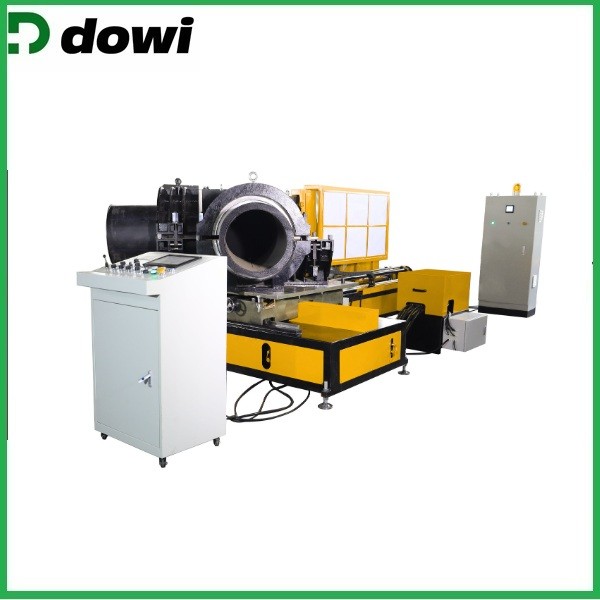

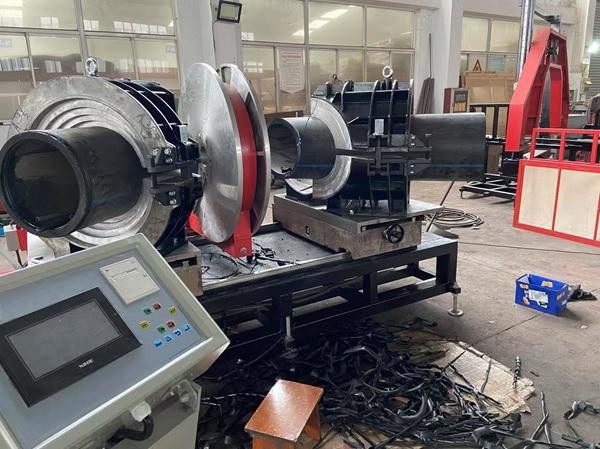

DWF450/630/800/1000/1200 Workshop Fitting Welding Machine

DWF450/630/800/1000/1200 Workshop Fitting Welding Machine

1. Suitable for fabricating Elbow, Tee, Y shape(45° and 60°) fittings of PE PP PVDF in workshop.
2. Intergrated structure, nothing remains but to choose the different special clamps while fabricating different fittings.
3. Consists of Basic Frame, Hydraulic Unit, Trimmer, Heater and Electric Control Unit.
4. Removable PTFE coated heating plate with separate temperature control system.
5. Electric Trimmer with resersible double cutting edge blades.
6. Hydraulic Unit provides welding machine with compressing power.
7. Low starting pressure ensurs reliable welding quality of small pipes.
8. Including the Temperature Controller and Timer, easy to know the time and temperature.

Suitable for fabricating elbow, tee.cross and Y shape (45°and 60°) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting. Integrate structure

Suitable for fabricating elbow, tee.cross and Y shape (45°and 60°) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting. Integrate structure

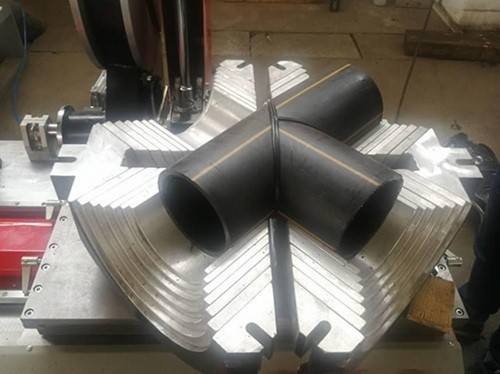

Nothing remains but to choose the different special clamps while fabricating different fittings

Removable PTFE coated heating plate

Electric planning tool with safety limit switch

Low starting pressure and high reliable seal structure

Separate two-channel timer records times in soaking and cooling phases

High-accurate and shockproof pressure meter indicates clearer readings. Digital pressure meter is installed on machines

Pivoting planning tool and heating plate bring convenience to placing and removing, Products comply with 98/37/EC and 73/23/EEC standards

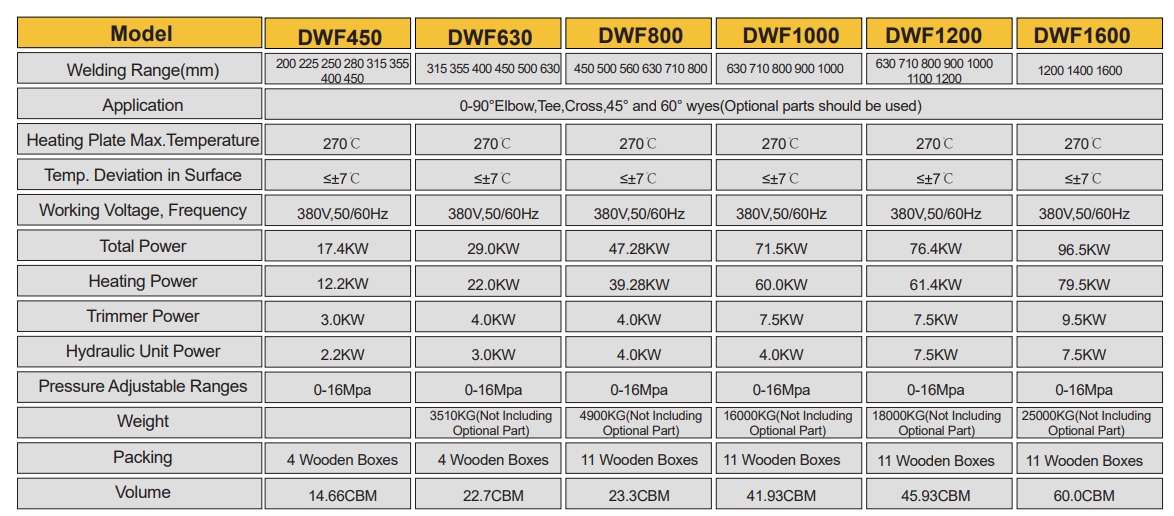

630 800 1200 workshop fitting welding machine data.png
